Radial Catapult Mini

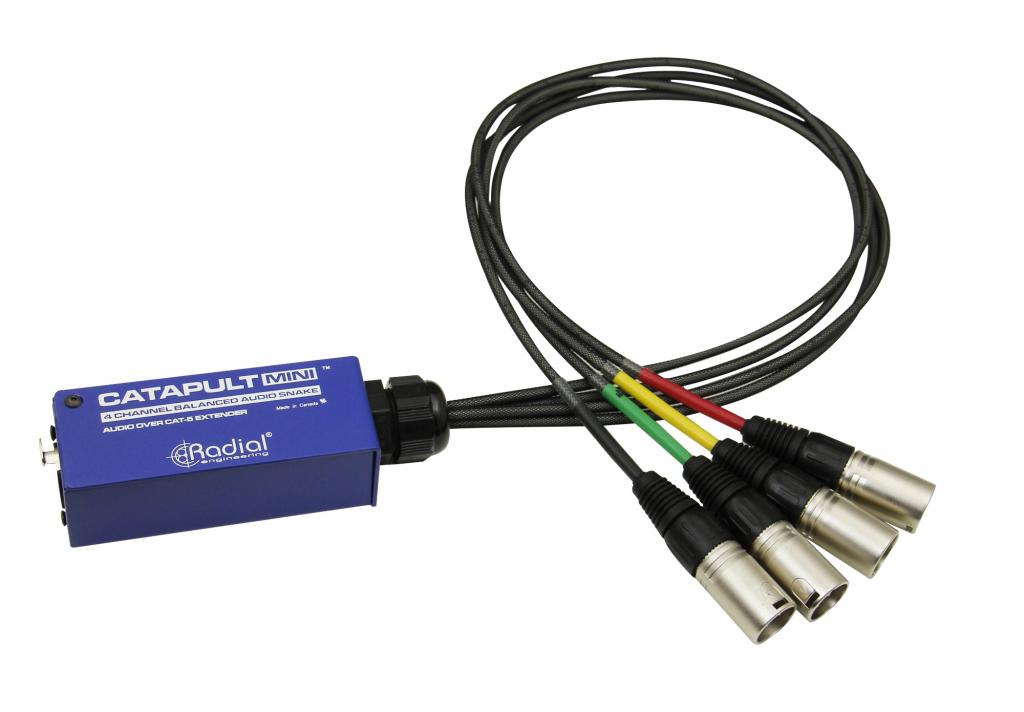

The Radial Catapult Mini™ is the latest addition to the modular Catapult snake system, which provides the ability to drive four analog audio channels over a single shielded Cat 5 cable. The Catapult Mini TX (transmitter) and RX (receiver) both feature a compact steel chassis with a hardwired fan-out to four XLR connectors, providing a simple and rugged solution for delivering balanced analog audio between any two destinations without signal loss or degradation.

What makes the Catapult system unique is that it connects via Cat 5 Ethernet cable which is widely available, lightweight, and economical. As many buildings are already pre-wired for Cat 5, the Catapult Minis can take advantage of this to easily transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable and allows contractors to utilize installed network cable and easily connect from one room to another.

All of the Radial Catapult modules are compatible with each other, and each is sold individually, providing the option to mix and match as needed. The Catapult Mini TX and RX can be used together as a pair to create a compact four-channel audio snake, or they can be matched with other Catapult modules that include splitting capabilities or transformer isolation - allowing you to select whichever combination best suits your application.

MAP: $89.99 USD

For more information on the Catapult Mini: Catapult Mini - Radial Engineering



The Catapult Mini is a 4-channel compact audio snake that allows you to send analog audio signals over standard Cat 5 or Cat 6 shielded twisted pair cable.

The Catapult Mini RX and TX act like a typical four-channel analog audio snake; they allow you to send mic or line-level signals from one location to another without signal loss, noise, or interference, and without any digital audio conversion needed. What makes the Catapult system unique is that it utilizes Cat 5 Ethernet cable, which is widely available, lightweight, and economical. Simply connect a shielded Cat 5 cable between any two Catapult modules and they will use the analog conductors in the cable to deliver four balanced audio lines to any destination.

Catapult modules require no power to operate, and since they keep the signal in the analog realm, no digital conversion is necessary. Straight-wire connection from the XLRs to the RJ45 connector on a Cat 5 cable ensures that your audio passes through without coloration or distortion.

As many buildings are already pre-wired for Cat 5, you can take advantage of this to transmit audio between distant rooms without the need to install or supply new cabling. This eliminates the need for bulky and expensive multi-channel audio cable, and allows contractors to benefit from installed network cable and easily connect from one room to another.

All of the Radial Catapult modules are compatible with each other, and each is sold individually, so you can select whichever combination best suits your needs. The Catapult Mini RX and TX can be used together as a pair, creating a compact 4-channel audio snake. However, if you prefer to have a stage box to plug microphones into, but want a compact breakout cable that fits in the case with the mixer, combine the Catapult TX4 with the Catapult Mini RX. A variety of modules allow you to customize your transmit and receive devices to complement any application.
